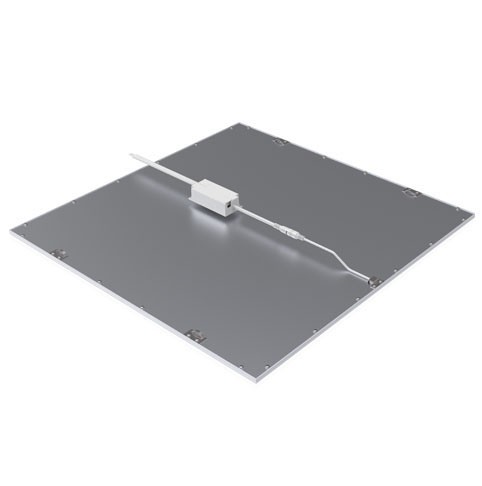

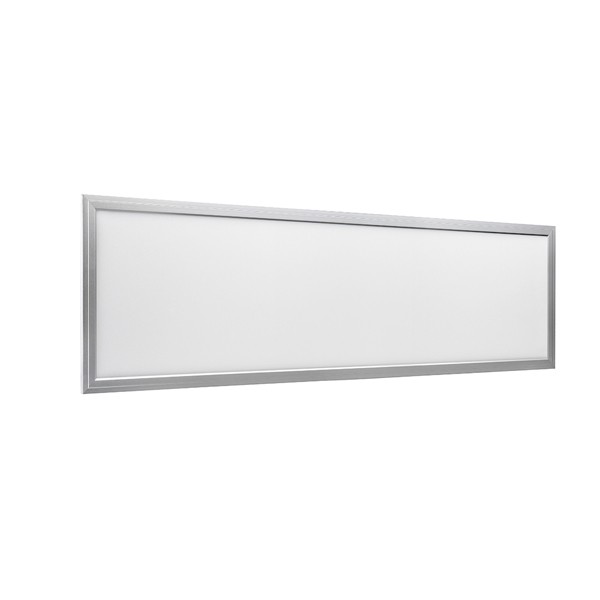

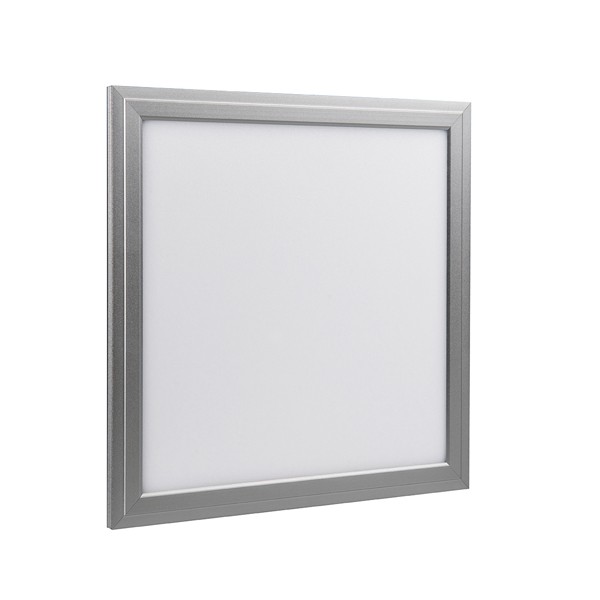

LED side-lite panel

• LM-80 certified LED
• Various installation options(recessd, screwless surface mount, suspending)
• Different dimming opional: Standard non-dimmable/0-10V Dimming/Triac dimming/DALI Dimming
• PMMA 2mm&3mm LGP

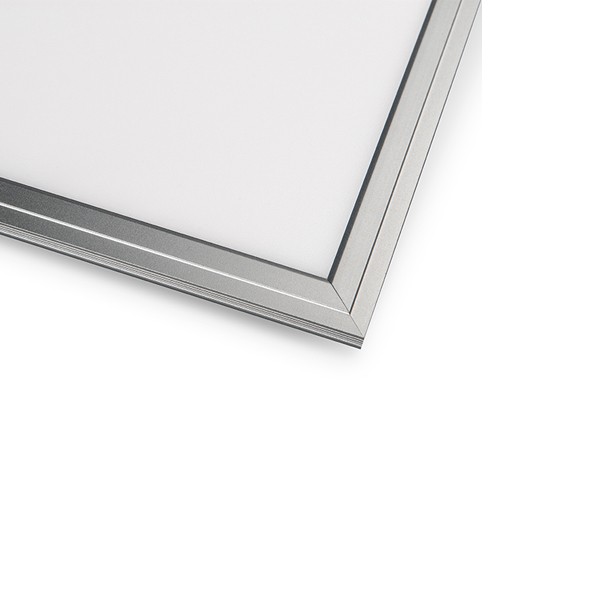

• Extra thin aluminum&white step frame thickness 10mm with different demension
• Housing material: Aluminum + PMMA + Diffuser

• Uniform light, feel comfortable looking at the light, UGR19(Prismatic)&UGR22 are option

Technical Features

• Input Voltage: AC220-240V 50/60Hz
• Operation Voltage: DC36-42V
• Wattage:25W / 36W / 40W / 50W
• 130lm per wattage or customized
• 2700K/3000K/4000K/5000K/6500K
• Total harmonic distortion: THD<15%
• Power Factor: PF≥0.90
• Color Index: Ra≥80/90
• Lumens maintenance @6000h: >80%
• Switching cycle before failure: 100,000
• IP Rating: IP20
• Life Span: 50,000 hours
• Operation Temperature: -25°C~+45°C
• Storage Temperature: -25°C~+55°C
• Complied with CE/SAA
